Bonnet And Boot Seals And Hardware

Plate Ref. No.DescriptionQuan. per vehJensen Part No.
1Bonnet stay support
(not recommended - use 100364K)
GT type stay kit1100364K
4Striker pin assembly192742
5Bonnet lock spigot192573
14Bonnet lock191106
15Locating plate191785
19Lock return spring191804
not illBonnet cable192953
20Drain valve291958
22Rubber buffer491788
23Radiator surround seal191708
24Heater inlet seal191709
31Boot lid lock190811
not illBoot lock gasket1DMS90812
not illBoot key blank1UN17
32Boot lid lock claw190863
35Boot lid lock striker190858
39Boot lid seal191491
57Bonnet safety catch192155

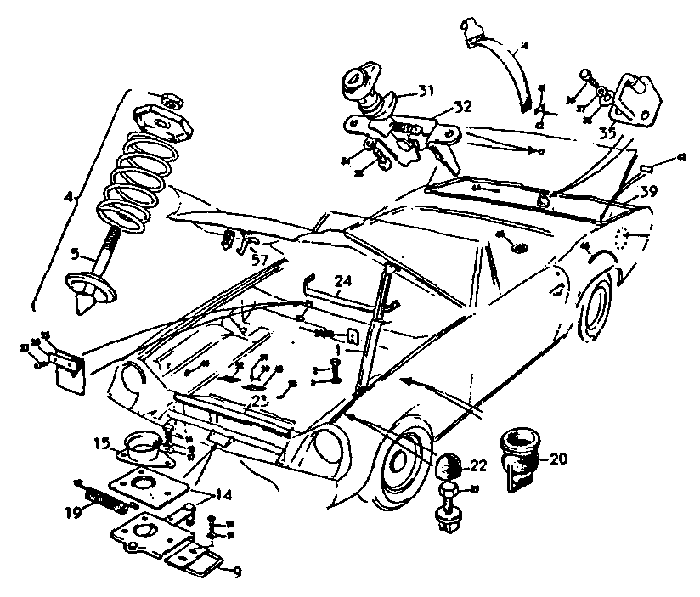

(Select diagram above to view larger size Then Use Browser GO-BACK.)
