Exterior Lights

Plate Ref. No.	Description	Quan. per veh	Jensen Part No.
1	Headlamp assembly	2	90593
2	Retaining rim	2	93775
9	Trimmer screw kit	4	93783
11	Body	2	94196
12	Headlamp gasket	2	93786
15	Front side/flasher lamp assembly	2	90597
16	Lens	2	93787
17	Bulb	2	LLB380
21	LH front side marker lamp assembly	1	90602
	RH front side marker lamp assembly	1	90603
22	Lens retaining rim	2	CT5377
23	Lens	2	93790
24	Bulb	2	LLB989
25	Reflector assembly	2	93792
29	LH rear side marker lamp assembly	1	90604
	RH rear side marker lamp assembly	1	90605
30	Lens retaining rim	2	CT5377
31	Lens	2	93900
32	Bulb	2	LLB989
33	Reflector assembly	2	93902
37	RH '73 rear lamp cluster assembly	1	90880
	RH '74-on rear lamp cluster assembly	1	97087

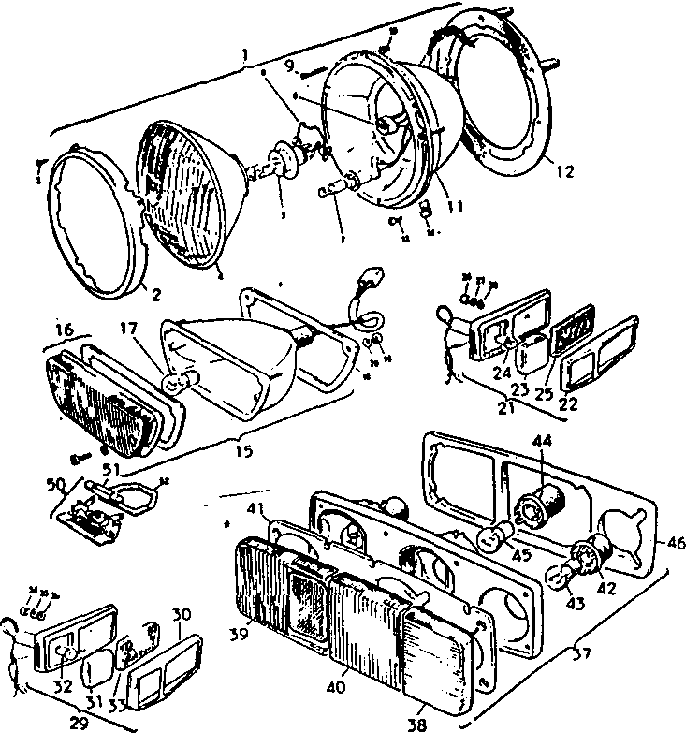

(Select diagram above to view larger size Then Use Browser GO-BACK.)
