| Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
| 8 | Boot lid frame assembly | 1 | 71840 |
| 10 | Saloon rear panel | 1 | 76353 |
| | Conv rear panel | 1 | 50018 |
| 11 | Saloon right rear 1/4 panel | 1 | 76392 |
| | Conv right rear 1/4 panel | 1 | 50252 |
| 12 | Saloon left rear 1/4 panel | 1 | 76393 |
| | Conv left rear 1/4 panel | 1 | 50251 |
| 13 | Right rear stoneguard | 1 | 71661 |
| 14 | Left rear stoneguard | 1 | 71662 |
| 15 | Right rear pillar assembly | 1 | 74304 |
| 16 | Left rear pillar assembly | 1 | 74305 |
| 19 | RH connection panel | 1 | 71663 |
| 20 | LH connection panel | 1 | 71664 |
| 25 | Inner skirt panel | 1 | 76352 |
|

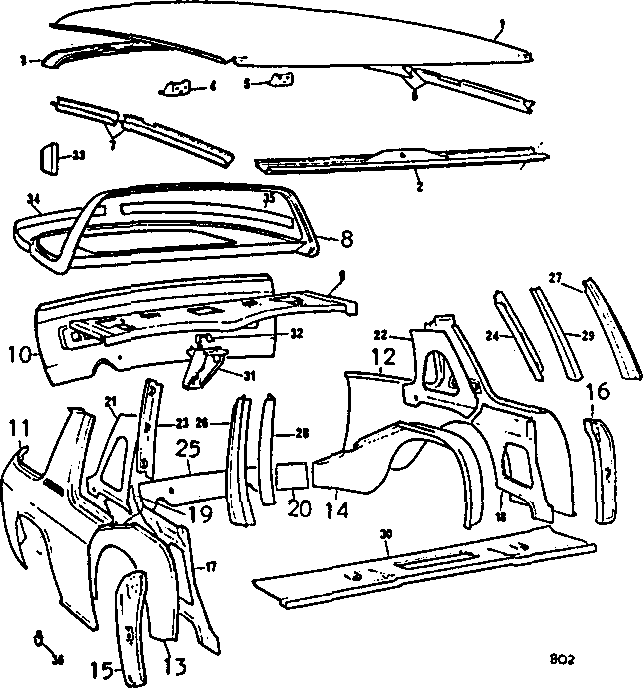

![[]](Images/RearPanelsAndFittingsPlate.gif)
(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
