| Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
| 1 | Bonnet release cable | 1 | 72233 |
| 3 | Bonnet cable grommet | 2 | S260 |
| 8 | Bonnet lock striker | 2 | 71438 |
| 9 | Bonnet lock | 2 | 72453 |
| 10 | Bonnet locks link | 1 | NLS |
| 14 | Bonnet stay grommet | 2 | S260 |
| 17 | Bonnet stay rubber | 1 | 74192 |
| 18 | Bonnet leap spring | 2 | 70893 |
| 21 | Bonnet surround seal | 1 | 71111 |
| 22 | Bonnet support strut | 2 | 71961 |
| | Spring for above | 2 | 70871 |
| 23 | Bonnet buffer | 2 | 70561 |
| 25 | Leap spring wear plate | 2 | 70411 |
| 27 | Bonnet hinge pin | 2 | 71453 |
| 28 | Bonnet hinge plate | 2 | 71451 |
| 35 | Drain valve | 3 | 91958 |
|

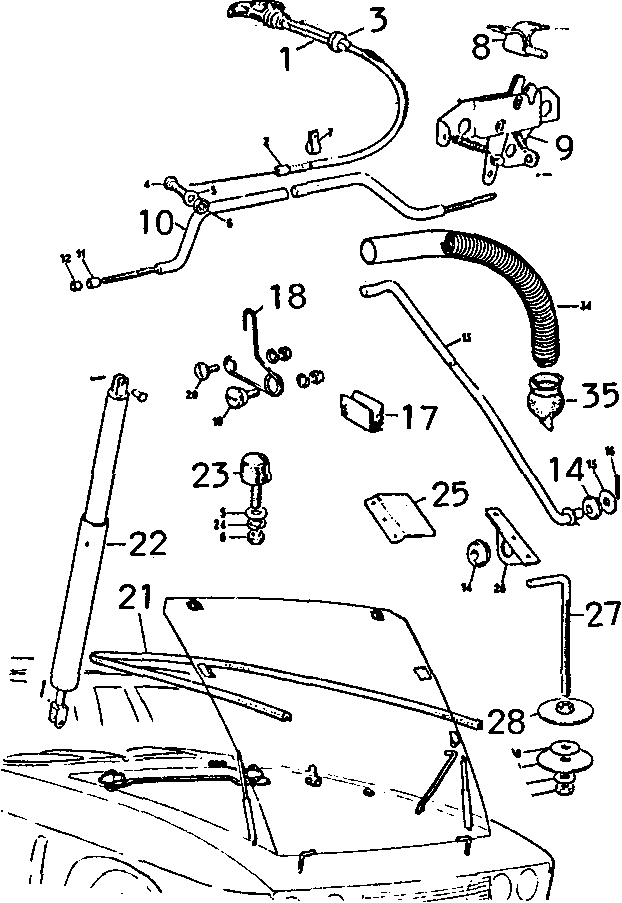

![[]](Images/BonnetFittingsPlate.gif)
(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
