Camshaft Pulleys, Belt And Guard
Note: "Early" refers to engines before # 2760
| Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
| 1 | Camshaft drive belt | 1 | 93460 |
| 3 | Adjuster | 1 | 94072 |
| 4 | Pulley | 1 | 93463 |
| 5 | Bearing | 2 | 93464 |
| not ill | '75 & GT bearing | 1 | 94691A |
| 6 | Nut | 1 | 94140 |
| 7 | Eccentric spindle | 1 | 94071 |
| 8 | Stud | 1 | 94136 |
| 9 | Cam & aux pulley | 3 | 94307 |
| 10 | Key, pulley to shaft | 3 | 93469 |
| 14 | Bolt | 3 | 67029 |
| 15 | Crankshaft pulley | 1 | 94138 |
| 16 | Crank pulley flange | 1 | 93474 |
| 17 | Shroud, early | 1 | 94399 |
| 36 | Shroud, late | 1 | DMS94219 |
| 37 | Tie Plate | 2 | 94220 |
| 40 | Guard to thermostat housing bracket | 1 | 94359 |
| 46 | Guard to cam bracket | 1 | DMS94226 |
|

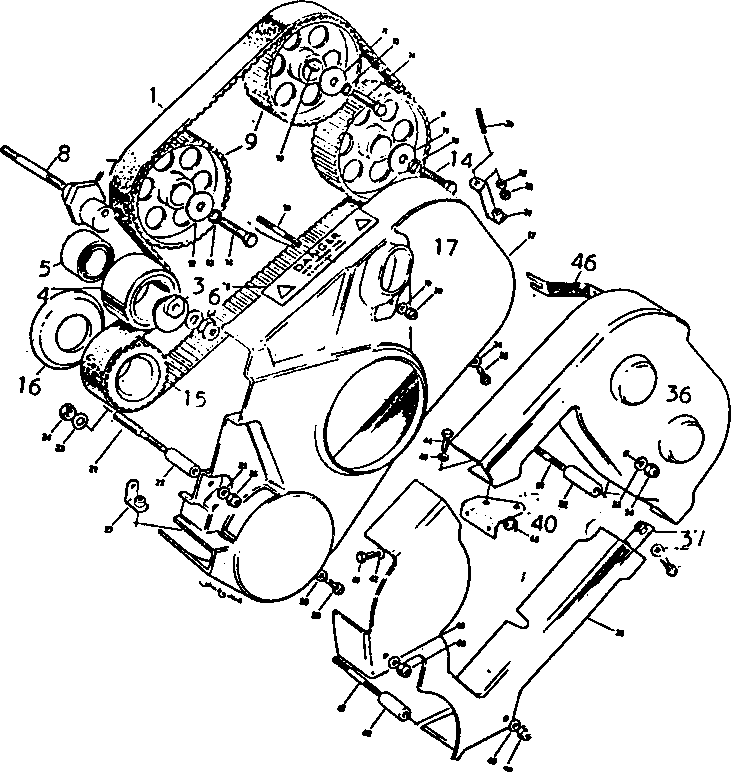

![[]](Images/CamshaftPulleysBeltAndGuardPlate.gif)
(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
|
