Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
1 | Crash roll | 1 | 92897 |
2 | Crash roll finisher | 2 | 91945 |
3 | Interior mirror | 1 | 91101 |
not ill | Mirror base | A/R | 91101A |
5 | Rebuilt sunvisor, exch | 2 | 92409R |
6 | LH sunvisor pivot | 2 | 90929 |
7 | RH sunvisor pivot | 2 | 90930 |
13 | Bonnet release cable | 1 | 92953 |
14 | Cable grommet | 1 | 66615 |
20 | Bonnet cable clip | 1 | 93754 |
23 | Air vent flap hinge | 2 | 91766 |
not ill | Vent flap grommet | 4 | 66603 |
26 | Control rod knob | 2 | 91770 |
29 | Control rod grommet | 2 | 66603 |
39 | Door aperture seal | 2 | DMS91214 |
40 | Sill kick strip | 2 | 91002 |
42 | LH door seal finisher | 1 | 91715 |
| RH door seal finisher | 1 | 91716 |
44 | Door latch striker | 2 | 92949 |
45 | Striker cover plate | 2 | 92948 |
46 | Cover plate gasket | 2 | 92950 |
50 | Floor blanking plug | 24 | 66702 |
57 | Scuttle sealing plug | 2 | 66702 |
|

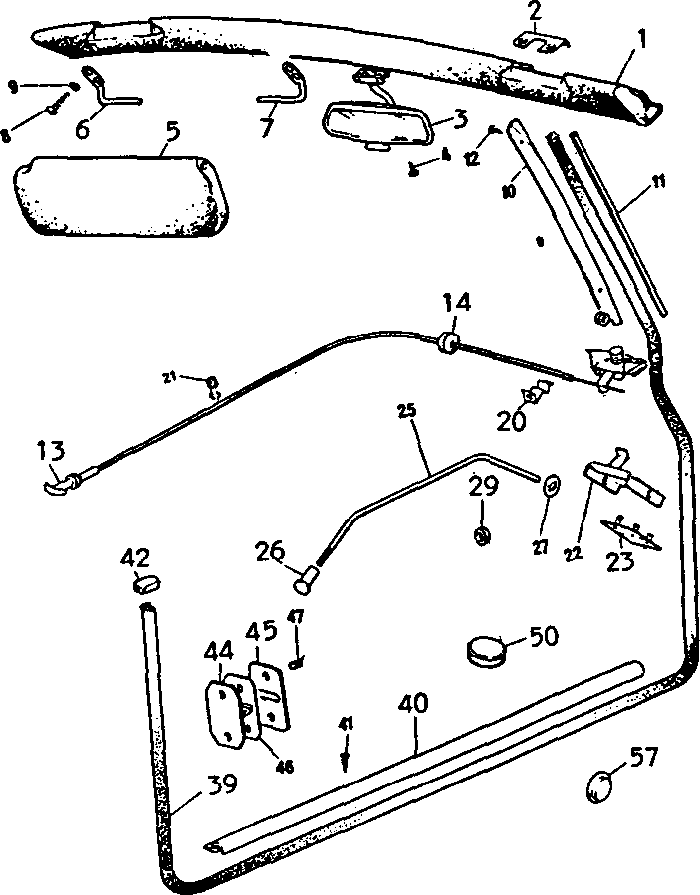

(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
