Facia, Instrument Panel & Glovebox

Note: "Early" refers to engines before # 2760

Plate Ref. No.DescriptionQuan. per vehJensen Part No.
1Dash cap1JHO1
2Demist outlet bezel291126
4LH demist outlet191221
RH demist outlet191259
7Tenax peg292000
9Face level vent290824
10Vent ring support291128
11Glove box striker192691
14Long finisher strip192620
15Short finisher strip192622
17Glove box, early '74192678
Veneered glove box198138
Glove box rebuild kit GBJE001
18Glove box moulding198171
19Glove box lock192766
23Glove box Ck strap290825
36Instrument panel192815
37Panel finisher191511
39Speedometer M.P.H.191162
40Battery guage191165
41Oil pressure guage191164
Pipe to oil gauge198089A
42Water temp guage191166
not illTemp transmitter191428
43Fuel guage191167
44Instrument bulb6LLB987
44Instrument bulb, 5w replacement for 2w OE6MS1205
not illFuel sender191169
Fuel sender, rebuilt 191169R
not illFloat for above1KS
45Main beam warning173445
46Warning indicators273425
47Warning lights bulb3LLB281
604 speed speedometer cable191494
5 speed speedometer cable197583
63Voltage stabilizer191712
64Odometer reset cable192054

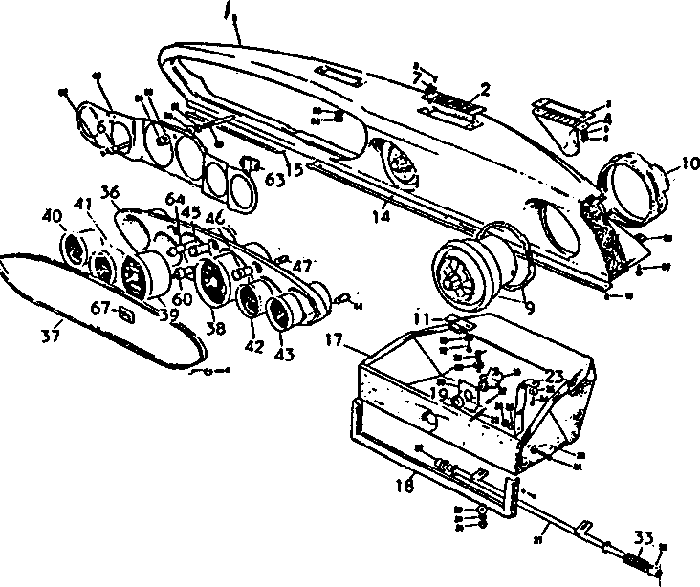

(Select diagram above to view larger size Then Use Browser GO-BACK.)
