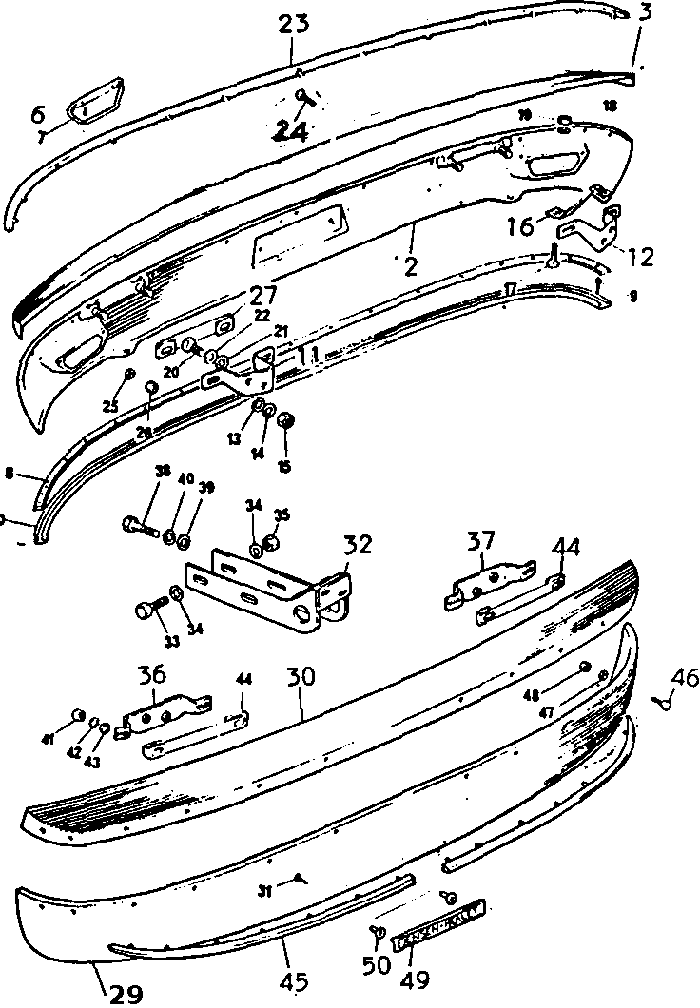

Plate Ref. No.DescriptionQuan. per vehJensen Part No.
2Lower panel191606
3Upper panel191133
6Side light finisher297052
11LH mounting bracket191114
12RH mounting bracket191115
16Bumper steady bracket291522
24Stud plate finisher1391623
27Tie strap297239
29Lower panel191984
30Upper panel191137
32Mounting bracket297235
36LH extension mount191354
37RH extension mount191355
44Tie strap297239
46Stud plate finisher1491623
49Jensen-Healey badge191599
50Push fix266201

Please contact us for late rubber bumpers and parts.

(Select diagram above to view larger size Then Use Browser GO-BACK.)
