Exterior Hardware
Note: "Early" refers to engines before # 2760
Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
1 | Spare wheel carrier | 1 | 90751 |
2 | Screw jack assembly | 1 | 90068 |
3 | Screw assembly | 1 | 90874 |
14 | LH stoneguard | 1 | 90351 |
| RH stoneguard | 1 | 90352 |
15 | Front guard seal | 2 | 100129 |
16 | Rear guard seal | 2 | 100129 |
18 | LH stoneguard | 1 | 90774 |
| RH stoneguard | 1 | 90775 |
19 | Rear stoneguard to VIN 10289 | 2 | 90776 |
| Rear stoneguard from VIN 10290 | 2 | 92903 |
not ill | LH HL cowl, early | 1 | |
| Fiberglass repro, square outside lower rear corners | 1 | DMS91228 |
not ill | RH HL cowl, early | 1 | |
| Fiberglass repro, square outside lower rear corners | 1 | DMS91229 |
25 | LH HL cowl, late | 1 | |
| Fiberglass repro, round outside lower rear corners | 1 | DMS92358 |
| RH HL cowl, late | 1 | |
| Fiberglass repro, round outside lower rear corners | 1 | DMS92359 |
42 | Air scoop mesh | 1 | 98389 |
47 | Antenna | 1 | 97221 |
48 | Seal | 1 | 100129 |
|

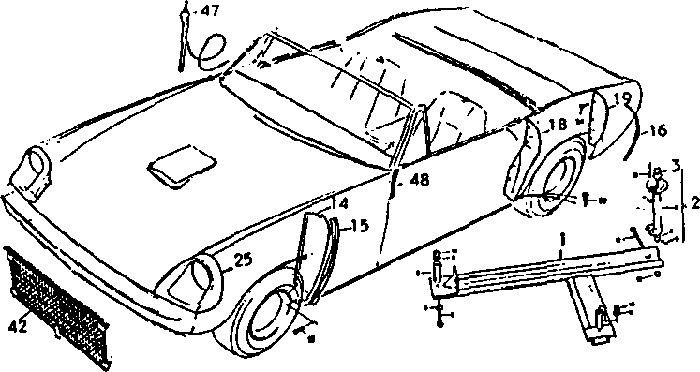

(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
|
