Interceptor Seats And Fittings

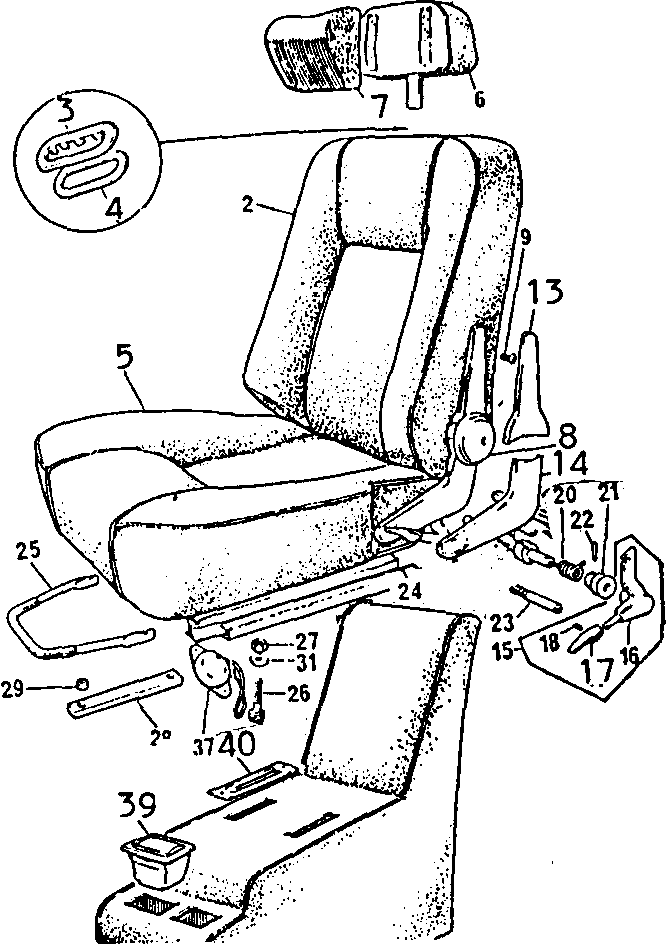

Plate Ref. No.DescriptionQuan. per vehJensen Part No.
3Location plate275454
5Front cushion foam273375
7Pillow, color?299692
8Seat recliner mech:
RH seat RH side173406
RH seat LH side173407
LH seat RH side173408
LH seat LH side173409
not illChrome cover2NLS
13RH recliner finisher274629
LH recliner finisher274630
14RH recliner finisher274631
LH recliner finisher274632
17Retainer hook handle473382
39Console ash tray197136
40Rear seat belt bezel275756
not illFront seat belt 2849028
not illRear seat belt2869077

(Select diagram above to view larger size Then Use Browser GO-BACK.)
