Interceptor Windscreen & Quarterlight

Plate Ref. No.DescriptionQuan. per vehJensen Part No.
1Windscreen finisher171050
2Windscreen finisher171051
3Windscreen joint cover271052
7Windscreen (Sundym)171953
8Windscreen sealing rubber170910
9RH door seal171536
LH door seal171537
15RH 1/4 light with hole175166
LH 1/4 light with hole175167
16RH 1/4 light seal176731
LH 1/4 light seal176732
15RH 1/4 light, no hole176445
LH 1/4 light, no hole176446
not illWasher bottle and pump assembly199240
not illAftermarket bottle and pump assembly199240A
not illAftermarket pump193019A
20Washer jet291702
21Jet cover2NLS

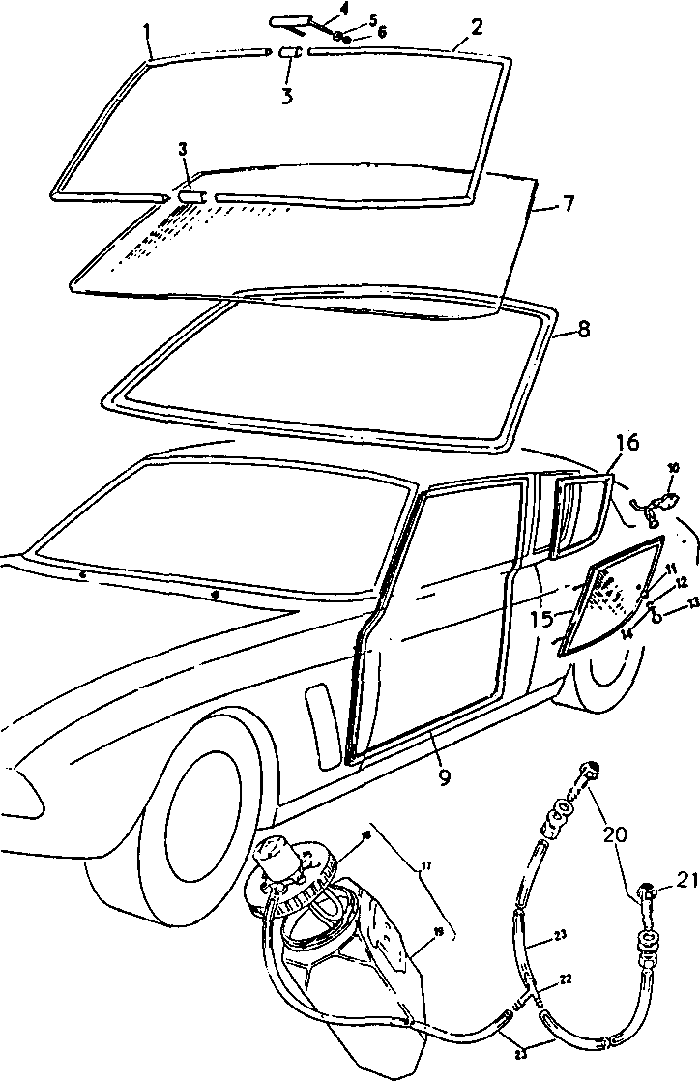

(Select diagram above to view larger size Then Use Browser GO-BACK.)
