| Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
| 1 | Inlet manifold | 1 | 93627 |
| 1 | Used inlet manifold | 1 | 93627USD |
| 2 | Manifold to eng stud | 9 | 94069 |
| 3 | Manifold gasket | 1 | 93554 |
| 6 | Carb flange stud | 6 | 94069 |
| 7 | Thackeray washer | 6 | 93630 |
| | Rubber Thackeray | 6 | 94569 |
| 8 | Nut | 6 | 93492 |
| 9 | O-ring | 2 | 93631 |
| 10 | Adaptor | 2 | 93632 |
| 12 | Adaptor gasket | 2 | 93634 |
| 15 | Nut | 8 | 93635 |
| 20 | Airbox assembly | 1 | DMS93970 |
| 22 | Gasket | 1 | 97256 |
| 28 | Breather hose | 1 | 94070 |
| 34 | Fuel 'T' kit | 1 | DMS91475 |
|

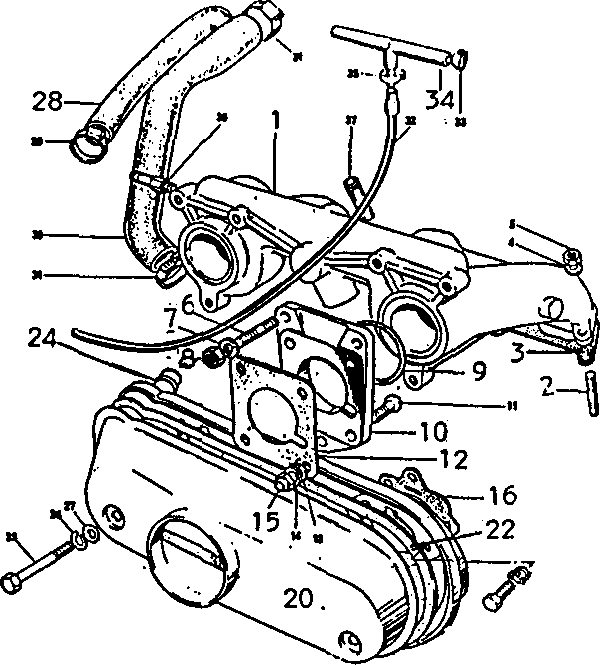

![[]](Images/IntakeManifoldAndAirboxPlate.gif)
(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
