Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
1 | Radiator assembly | 1 | NLA |
| 3 Row radiator, Exch | 1 | NLA |
2 | Cap | 1 | 92013 |
3 | Drain tap | 1 | 91466 |
5 | '72-'74 top hose | 1 | 90466 |
| '75 top hose | | 98378 |
not ill | GT top hose | 1 | 99051 |
6 | '72-'74 bottom hose | 1 | 90467 |
| '75 bottom hose | | 98415 |
not ill | GT lower hose | 1 | 99052 |
12 | Overflow reservoir | 1 | NLA |
| Stopper & tube assembly | 1 | 91933 |
not ill | Recovery bottle: | | |
| Full pressure style | 1 | NLA |
| Flat cap for above | 1 | FC57 |

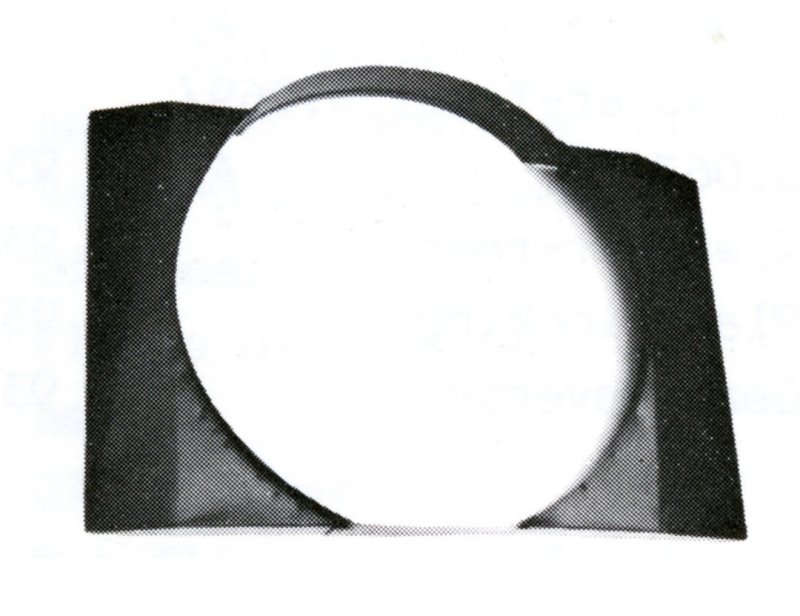

| Fan shroud kit | 1 | 97967K |
not ill | Bypass hose | 1 | 93670 |
not ill | Manifold hose | 1 | 93673 |
| Manifold hose, not OE | | 93673A |
not ill | Thermostat | | |
| 82oC hi temp | 1 | 93668 |
| 74oC low temp | 1 | QTH167 |
not ill | Thermostat gasket | 1 | 93669 |
|

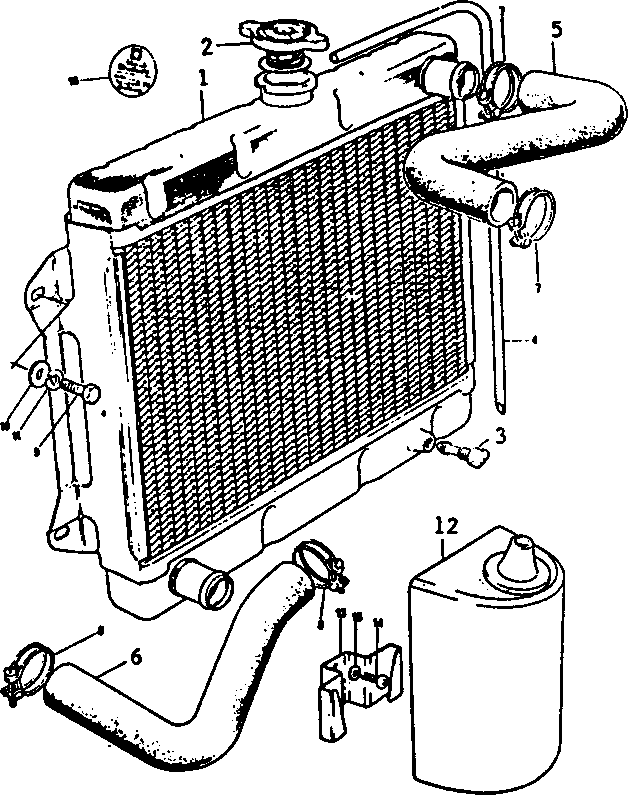

(Select diagram above to view larger size Then Use Browser GO-BACK.)
|
