Plate Ref. No. | Description | Quan. per veh | Jensen Part No. |
1 | Crossmember assembly | 1 | 91498 |
2 | Bump stop | 2 | 91285 |
3 | Mounting assembly | 2 | 91281 |
4 | Top mount bolt | 2 | 91282 |
5 | Nut | 2 | 91301 |
6 | Rear mount bolt | 2 | 98195 |
8 | Bushing | 2 | 91284 |
10 | Locking nut | 2 | 65407 |
11 | Upper arm assembly | 2 | 91289 |
12 | Prothane upper A arm bushings (Set of 4) | 1 set | DMS93200 |
13 | Ball joint assembly | 2 | 93201 |
19 | Upper arm bolt | 2 | 91290 |
20 | Special washer | 4 | 91323 |
21 | Nut | 2 | 91324 |
22 | LH lower arm assembly | 1 | 91291 |
| RH lower arm assembly | 1 | 91292 |
23 | Prothane lower A arm bushing | 2 | DMS93206 |
25 | Ball joint assembly | 2 | 93207 |
32 | Lower arm bolt | 2 | 91325 |
33 | Nut | 2 | 91301 |
35 | '73 LH vertical link | 1 | 91287 |
| '74 LH vertical link | 1 | 94620 |
| '73 RH vertical link | 1 | 91288 |
| '74 RH vertical link | 1 | 94619 |
36 | LH steering arm | 1 | 93212 |
| RH steering arm | 1 | 93211 |
37 | Damper assembly (See KYB Shocks) | 2 | KG5501MOD |
40 | Upper fixing bolt | 2 | 91282 |
41 | Nut | 2 | 91301 |
42 | Outer bracket | 2 | 91297 |
43 | Inner bracket | 2 | 91298 |
44 | Lower fixing bolt | 2 | 91300 |
45 | Nut | 2 | 91301 |
46 | Bracket to arm nut | 2 | 65406 |
48 | Coil spring | 2 | 91194 |
not ill | HD spring, pair | A/R | 44-JHF |
49 | Coil spring seat | 2 | 91315 |
50 | Strut rod | 2 | 91309 |
51 | Locking nut | 4 | 91314A |
52 | Cup washer | 4 | 91313 |
53 | Bushing/sleeve assembly (The originals are no longer available so we have had these heavy duty replacements made in polyurethane. All four must be replaced at the same time. Includes spacer tubes. Order 2 kits per car.) | 2 | DMS91310/1 |
56 | Strut rod bolt | 4 | 65021 |
58 | Locking nut | 4 | 65407 |
60 | Locking nut | 2 | 65406 |
|

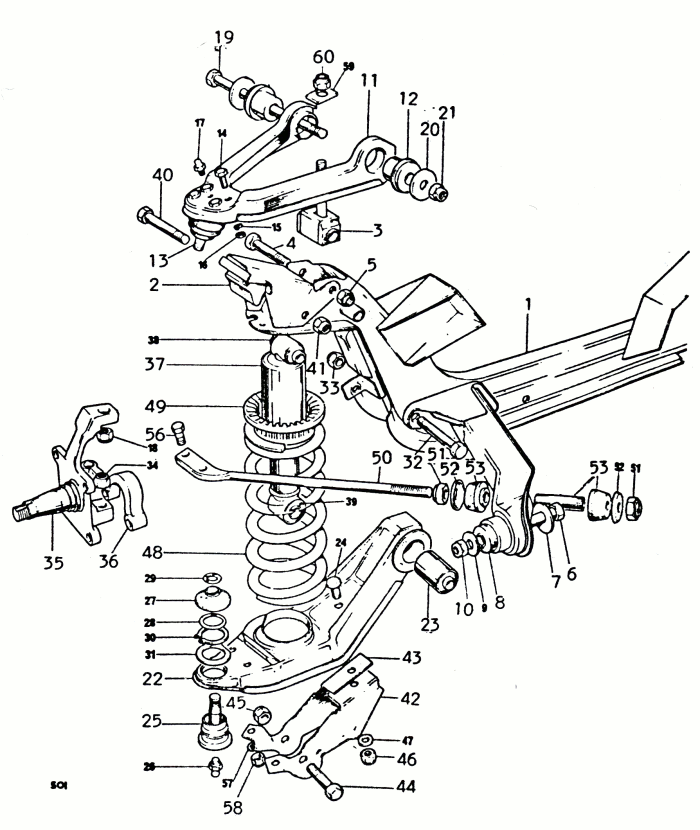

(Select diagram above to view larger size Then Use Browser GO-BACK.)

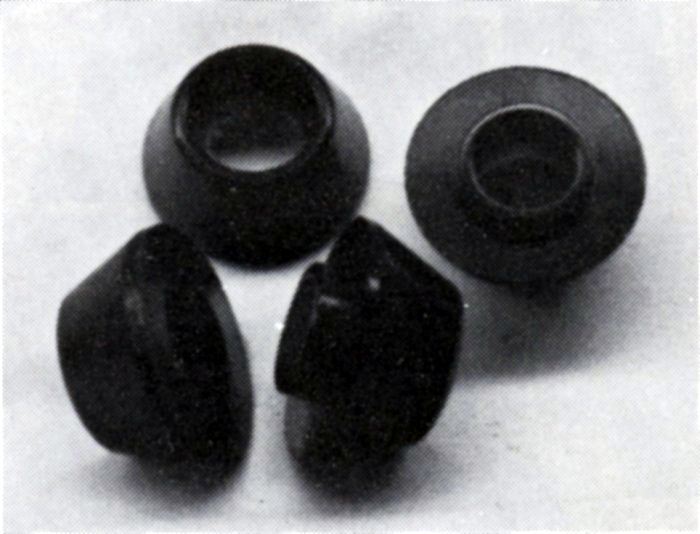

(Select Strut Rod Bushings photo above to view larger size.)
|
